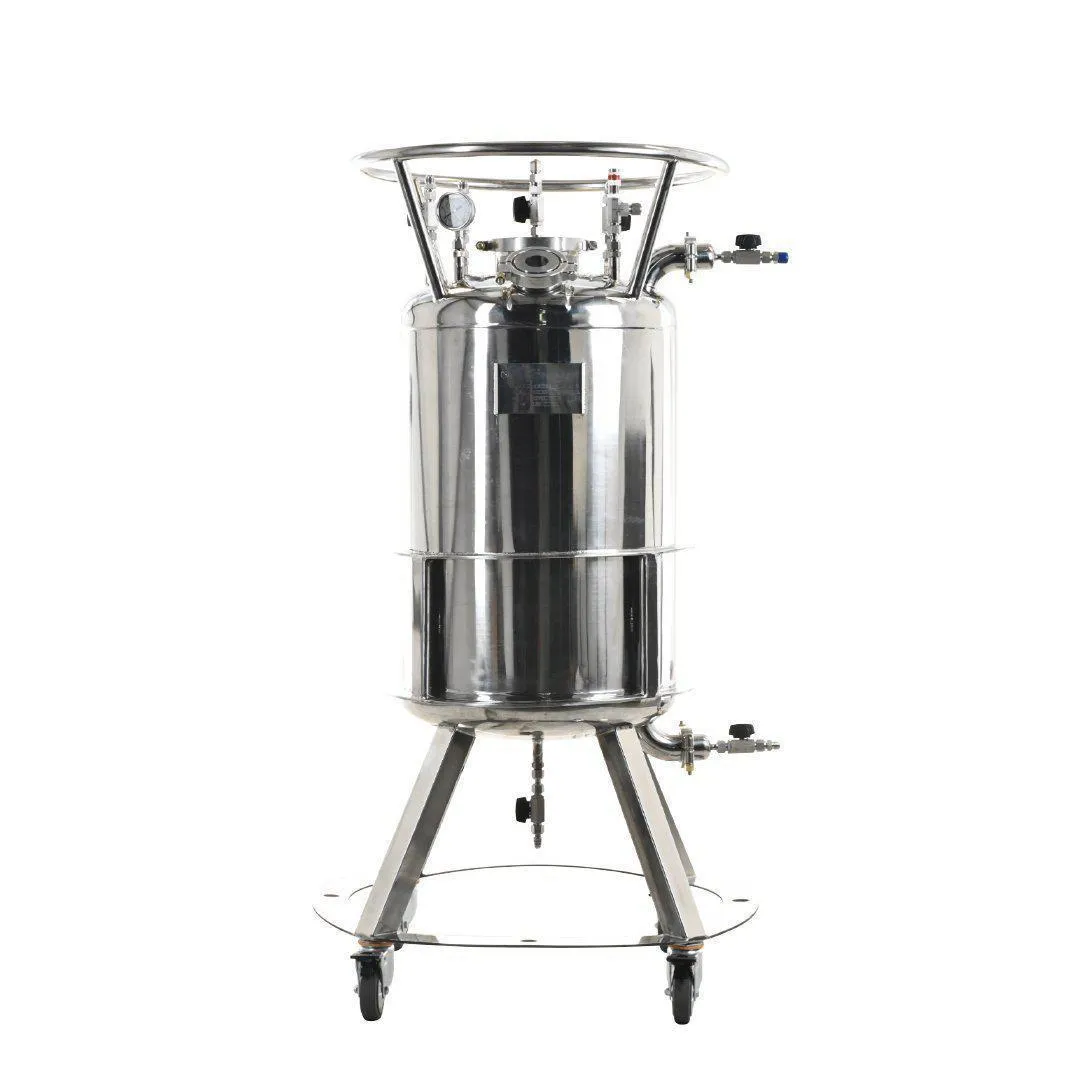

260-lb ASME Solvent/Collection Tank
Features:
- Single Jacket
- Full compression vessel/build-out
- All 1/2" ports on the vessel are designated to the inner vessel
- Jacket uses distinguishable 2" tri-clamp ports reduced to 1/2" using hemispherical end-caps
- Can be used a solvent tank or collection vessel
- ASME Certified

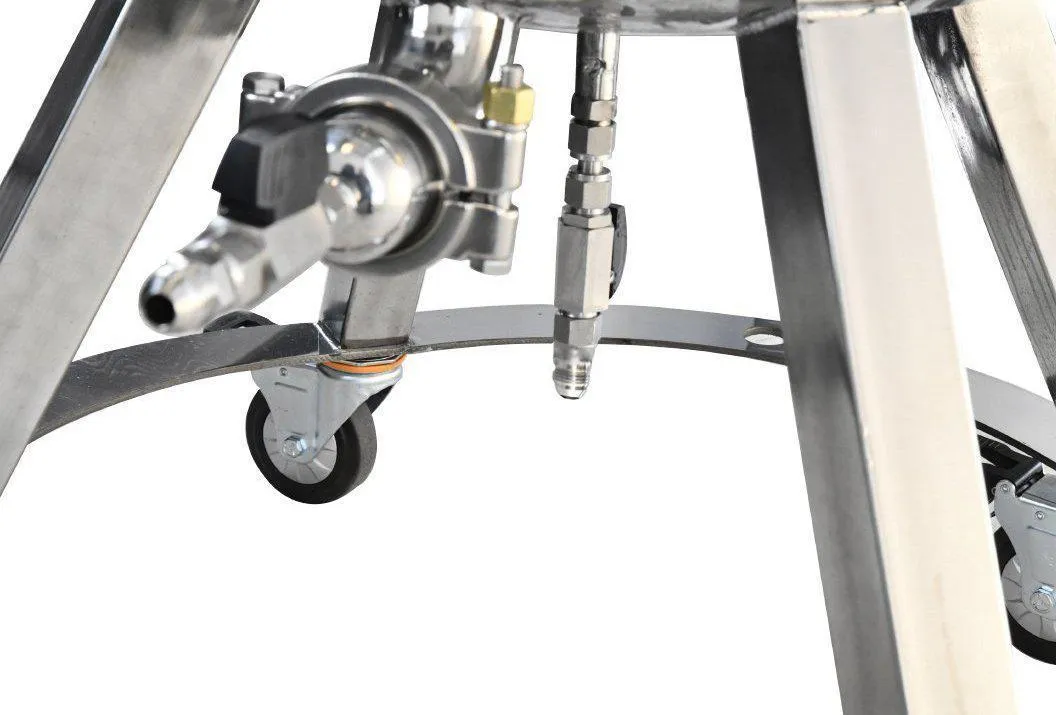

- Easily moveable and stable
- Rated for and set @ 250 PSI
- (2) 3" High Quality MetaGlas
Ships via Freight and will be charged separately.
Shipping team will reach out via phone.
| 260-lb ASME Solvent/Collection Tank | 260-lb ASME Solvent/Collection Tank Jacket | ||||
| WATER VOLUME #1 | 7125.13 | CUBIC IN. | WATER VOLUME #1 | 2299.65 | CUBIC IN. |
| WATER VOLUME #2 | 30.84 | GAL | WATER VOLUME #2 | 9.96 | GAL |
| WATER (100% FILL) | 257.40 | LB | WATER (100% FILL) | 83.08 | LB |
| BUTANE (80% FILL) | 123.76 | LB | |||
| PROPANE (80% FILL) | 101.52 | LB | |||
| 70/30 (80% FILL) | 117.09 | LB | |||
